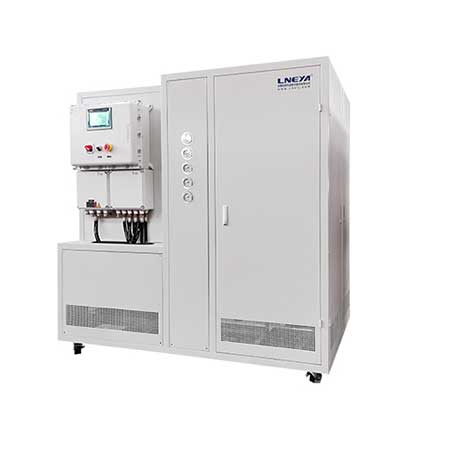

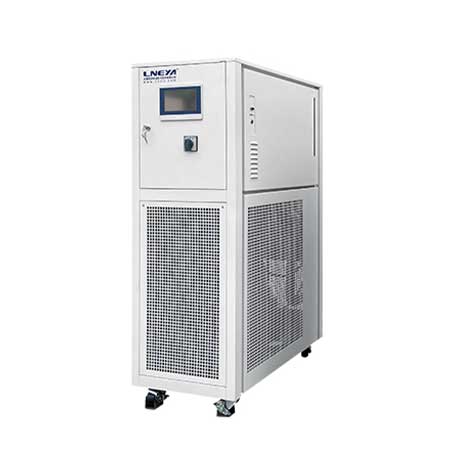

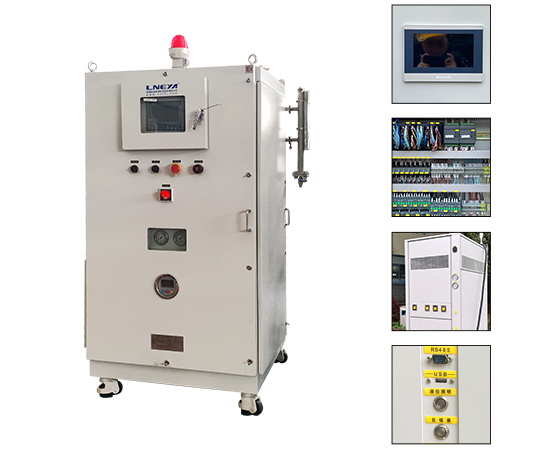

SUNDI -45 ~ +250°C Heater Chillers

heating chillers
-45 ~ +250°C (optional: -150 ~ +350°C)Temperature Range
0.45 ~ 200kWCooling Capacity
6.5 ~ 280kWPower
±0.5°CAccuracy
7 / 10 inchColor Touch Screen
35 ~ 600L/minCirculation Pump

Features of Cooling and Heating Systems

  • Previously unachievable performance.
  • Intelligent temperature control system.
  • Maximum process stability and reproducibility.
  • Adop plate heat exchager, Pipeline heating, the fastest heating and cooling rates.
  • High cooling power from 0.5 to 1200kW.
  • Large temperature range without fluid change.
  • Closed system, extend thermal fluid lifetime.
  • Incredibly compact.
  • 7-inch, 10-inch color TFT touch screen display.
  • Comprehensive warning and safety functions.
  • Rapid cooling down from high temperature.
  • Use magnetic drive pump, solve the circulation pump leakage.

Advantages of Cooling and Heating Systems

chiller heater

Structure Design

A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature.

The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃.

Display Function

  1. Display all the kind of process control temperatures.
  2. Shows the liquid level of the heat conducting medium in the expansion vessel.
  3. Shows indication for refrigeration system working.
  4. Shows indication for heater working.
  5. Shows indication for circulation pump working.
  6. Display the temperature control.
  7. The temperature upper limit, lower limit control can be set.
  8. The temperature difference between jacket & reactor material can be set.
  9. Shows the alarm to add the liquid when it is empty.
  10. The refrigeration compressor can be set to operate manually or automatically.
cool-heat-system

Data Interface and Software

Standard configuration:

  1. PT100 temperature sensor input interface.
  2. USB export data interface.
  3. RS485 communication interface (MODBUS protocol).
  4. Alarm output

Optional:

  1. 4 ~ 20mA Input interface for temperature measurement.
  2. 4 ~ 20mA Input interface for setting temperature.
  3. Ethernet interface.
  4. RS232 communication interface (MODBUS protocol).
  5. Profibus-DP interface.
  6. Computer operation software (optional Ethernet interface).
heat-cool-unit-1

Configuration Software (Optional)

All dynamic temperature control system can be connected with the computer.
You can install and record the picture of display on the computer via the configuration software.

  • Communication distance less than 200m.
  • Easily temperature setting.
  • Real time control screen.
  • Curve records.
  • Program selection.
  • Alarm screen recording.

Products Parameters



Noted: Can provide customized services all types of equipment. Please consult us for details.



ModelSUNDI-535
SUNDI-535W
SUNDI-555
SUNDI-555W
SUNDI-575
SUNDI-575W
SUNDI-5A10
SUNDI-5A10W
SUNDI-5A15
SUNDI-5A15W
SUNDI-4A25
SUNDI-4A25W
SUNDI-4A38WSUNDI-4A60WSUNDI-4A95WSUNDI-4A130W
Temp. range-45℃~+250℃
Control ModeFeedback PID + Our special dynamic control calculation, PLC controller
Temp. controlProcess temp. control and jacket temp. control model
Temp. differenceSet or control the temperature difference between jacket oil and raw material process
Program Editor5 programs, each program can edit 40 steps.
Communication PortocolMODBUS RTU Protocol, RS485 interface
Material temp. feedbackPT100 OR 4~20mA or communication(normal: PT100)
Temp. feedbackThe temp. of three points: the inlet and outlet of equipment, reactor material temp.(external temp. sensor)
Medium temp. acccuracy±0.5℃±0.5℃
Material temp. accuracy±1℃±1.5℃
Heating power kW3.55.57.5101525386095130
Cooling capacity kW at250℃3.55.57.5101525386095130
 20℃3.55.57.5101525386095130
 0℃357101525386095130
 -20℃1.52.94.26111626345070
 -40℃0.450.91.523.84.79121824
Circulation pump max
L/min bar
35355060110150200250400400
1.21.21.21.51.51.51.52.52.52.5
PumpMagnetic drive pumpMagnetic drive pump
CompressorTecumseh/Emerson copeland/Carlyle
Expansion valveElectronic expansion valve
EvaporatorPlate heat exchanger
Operation Panel7-inch touch screen,show temp curve\EXCEL data output
Safety protectionSelf-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation systemThe whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
RefrigerantR404A/R507C
Connection sizeZG3/4ZG3/4ZG3/4ZG1ZG1DN32 PN10DN50 PN10DN50 PN10DN65 PN10DN65 PN10
Water-cooled type W(cooling water@20℃)1200L/H
1.5bar~4bar
1500L/H
1.5bar~4bar
1800L/H
1.5bar~4bar
2600L/H
1.5bar~4bar
3200L/H
1.5bar~4bar
7m³/H
1.5bar~4bar
10m³/H
1.5bar~4bar
15m³/H
1.5bar~4bar
20m³/H
1.5bar~4bar
32m³/H
1.5bar~4bar
Dimension cm45*70*16055*70*17555*70*17565*85*18570*85*18580*120*185150*100*185200*145*205200*145*205205*145*225
Weight kg180195260320390620820110013501680
Power 380V 50HZ6.2kW9kW11.5kW16kW23kW37kW55kW85kW130kW178kW
Case materialCold-rolled sheet spraying (standard color 7035)
OptionalOptional Ethernet interface, configure the computer operating software. Optional outside touch screen display controller(separated),the communication line distance is 10 meter.
OptionalThe heating power is within 25KW, and the SUNDI series can be equipped with an optional temperature control accuracy of ±0.1°C.
