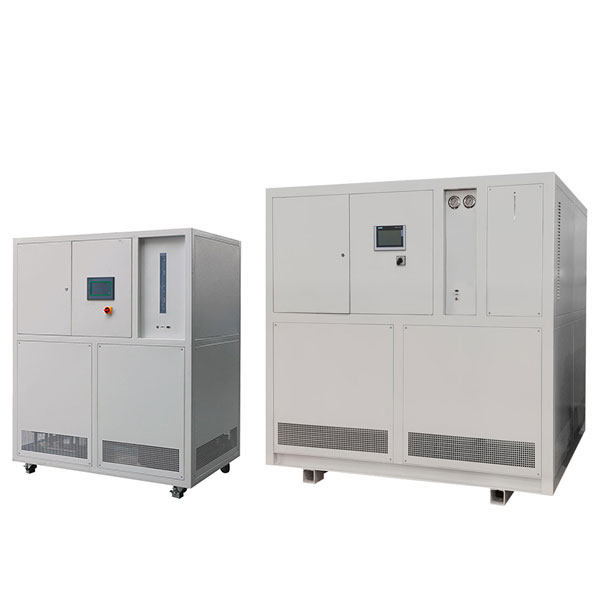

Low Temperature Chillers

LNEYA specializes in the production of single-fluid cryogenic chillers. Temperature control range down to -150°C, which can meet the needs of different refrigeration temperatures. Products are widely used in chemical, pharmaceutical, biochemical and other industries in the field of low temperature reaction, refrigeration speed, safety and reliability.

We developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.

Request A Quote

Email Us

ALL MODELS

Model	Cooling Capacity	Expansion Tank	Circulation Pump	Power
	kW	L	m³/h	kW
LC -25 ~ -5℃ series	12 ~ 360	100 ~ 1800	6.6 ~ 50	12 ~ 247
LJ -45 ~ -10℃ series	6 ~ 360	50 ~ 1800	6.6 ~ 50	12 ~ 247
LN -60 ~ -10℃ series	6 ~ 360	100 ~ 1800	6.6 ~ 50	14 ~ 300
LD -80 ~ -30℃ series	4 ~ 270	100 ~ 2200	6.6 ~ 65	14 ~ 588
CDLJ -110 ~ -50℃ series	2 ~ 180	50 ~ 1000	6.6 ~ 50	14 ~ 768
SLJ -150 ~ -110℃ series	1.4 ~ 11	/	/	8.6 ~ 36

Features of Low Temperature Water Chillers

The ultra-wide temperature control range can meet the temperature requirements of different industries.
Adopt environmental protection refrigerants.
Secondary subcooling technology is adopted, with fast refrigeration speed.
Imported semi closed piston compressor, semi closed piston two-stage compressor and semi closed screw compressor are adopted. The evaporator adopts high force plate heat exchanger, which has small volume and high efficiency.
A full set of imported cold controls (Danfoss pressure controller, balance valve, expansion valve, solenoid valve, drying filter, Emerson oil separator, alco sight glass, check valve, etc.) are adopted.
Generator cooling water circuit use intermediate heat exchanger, improve system reliability and safety.
Danfoss electronic expansion valve is adopted with high control accuracy.
Siemens PLC S7-200 / 300 controller, LNEYA touch screen display, automatic control and operation, temperature curve display, temperature record can be exported to USB flash disk, fault alarm record and other functions are adopted.
The large refrigerating capacity equipment adopts semi closed screw compressor with economizer operation, which is combined with electronic expansion valve to ensure high efficiency and energy saving.
Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.
Factory test: the load test of each equipment in the factory shall not be less than 12 hours.

Advantages of Low Temperature Water Chillers

The ultra-low temperature chiller adopts single-machine self-cascading refrigeration technology, the lowest temperature can reach -150 ℃, the refrigeration effect is good and the speed is super fast. Fully meet your temperature control needs. The accessories of the equipment can be customized according to your actual requirements.
Professional low-temperature and ultra-low temperature refrigeration equipment can be tailored for you. At the same time, this device also supports customized explosion-proof series, and the explosion-proof level conforms to national safety standards.
