LNEYA Chiller

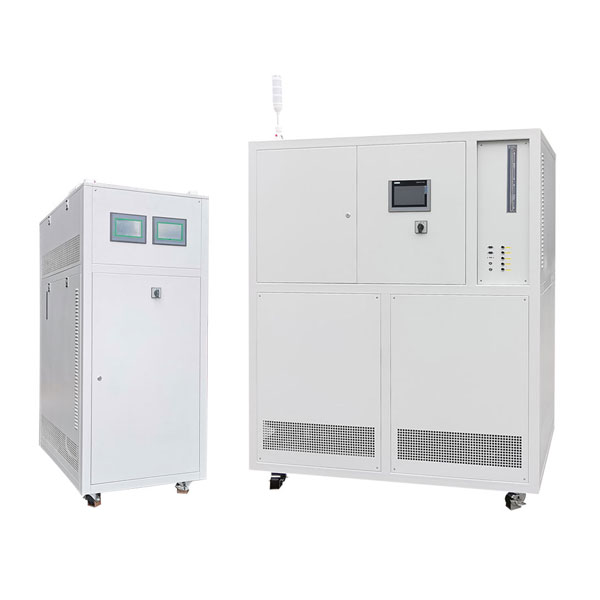

Automotive Chillers
Temperature simulation for vehicle quality test: battery life test, fuel injector/motor test bench, airbag test, component test bench, etc. It can simulate the external environmental conditions in the climate chamber or replace the internal system, which can create the necessary actual temperature conditions for the test bench.
ALL MODELS
| Model | Cooling Capacity | Heating Capacity | Flow Rate Output | Power |
| kW | kW | L/min | kW | |
| KRY -25 ~ +100℃ series | 2.8 ~ 38 | 5.5 ~ 38 | 1 ~ 50 | 11 ~ 45 |
| KRY -40 ~ +100℃ series | 1.2 ~ 60 | 5.5 ~ 60 | 1 ~ 50 | 12 ~ 84 |
| KRY 0 ~ +100℃ series | 1.8 ~ 60 | 2.5 ~ 60 | 2 ~ 50 | 4.5 ~ 61 |
| KRYP -40 ~ +135℃ series | 4 ~ 60 | 15 ~ 60 | 110 ~ 300 | 24 ~ 95 |
Features of Vehicle Test Chillers
- Multi channel output, independent control of flow, no interference with each other.
- Temperature, flow and pressure can be controlled separately.
- Multi channel temperature control, and one device can achieve multi channel output, and control the flow separately.
- Strong circulation pump ensures the delivery of high viscosity liquid, it can provide high flow under stable pressure.
- Clear circuit, compact structure, multiple fault alarm functions to ensure safe operation of the equipment.
- Temperature variation range is usually from -40 to 100 degrees (which can be extended to 150 degrees). While controlling the temperature, you can also choose to control the flow or pressure.
- Equipped with powerful circulating pump to ensure the delivery of high viscosity liquid; Variable frequency regulation or proportional regulation valve is used to control the flow output to achieve high-precision control of 5% ~ 100% of the total range.
- The temperature control equipment can be flexibly connected with other test platforms.
Advantages of Vehicle Test Chillers
- Equipped with a powerful circulation pump while ensuring the delivery of highly viscous liquids.
Control the flow output with variable frequency regulation or proportional control valve to achieve high precision control total range 5%~100% adjustment. - The new energy vehicle component test unit is mainly used for the offline detection of the drive motor of the new energy vehicle according to relevant test stanards and requuirements, it can test and simulate the performance requirements of motor in actual vehicle operation.
KRY series automotive test chillers support multiple channel temperature control
- Independent flow and pressure control
- temperature, flow and pressure are controlled independently.
Applications
- Battery Life Test
- Fuel Oil Test
- Motor Test Benches
- Converter and Inverter Test
- Test Bench for Electronics Components
- Component Tests for Power Modules
- Temperature Control of Air
- Other Applications
- Custom Design

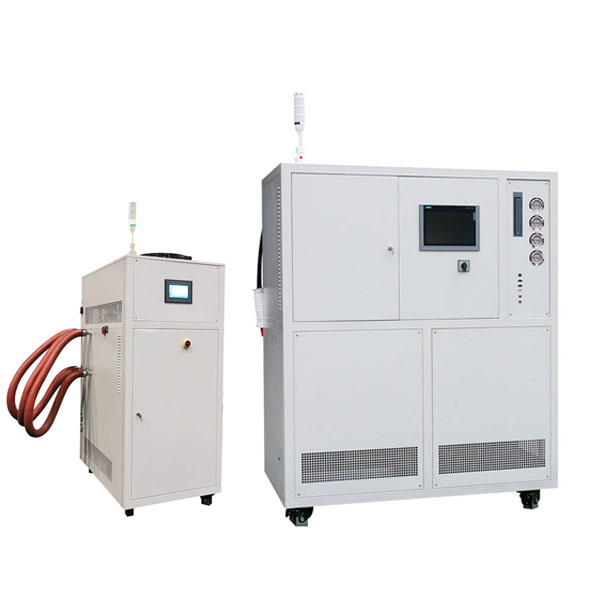

Automotive Chillers (one machine for multi groups)
Temperature / Pressure / Flow can be independently controlled
ALL MODELS
| Model | Cooling Capacity | Heating Capacity | Flow Rate Output | Power |
| kW | kW | L/min | kW | |
| KRY -40 ~ +100℃ 1&2 series | 1.8*2 ~ 60*2 | 7.5*2 ~ 38*2 | 1 ~ 40 | 30 ~ 158 |
| KRY 0 ~ +100℃ 1&2 series | 1.8*2 ~ 60*2 | 2.5*2 ~ 38*2 | 2 ~ 50 | 9 ~ 120 |
Features of Vehicle Test Chillers
- Multi channel output, independent control of flow, no interference with each other.
- Temperature, flow and pressure can be controlled separately.
- Multi channel temperature control, and one device can achieve multi channel output, and control the flow separately.
- Strong circulation pump ensures the delivery of high viscosity liquid, it can provide high flow under stable pressure.
- Clear circuit, compact structure, multiple fault alarm functions to ensure safe operation of the equipment.
- Temperature variation range is usually from -40 to 100 degrees (which can be extended to 150 degrees). While controlling the temperature, you can also choose to control the flow or pressure.
- Equipped with powerful circulating pump to ensure the delivery of high viscosity liquid; Variable frequency regulation or proportional regulation valve is used to control the flow output to achieve high-precision control of 5% ~ 100% of the total range.
- The temperature control equipment can be flexibly connected with other test platforms.
Advantages of Vehicle Test Chillers
- Equipped with a powerful circulation pump while ensuring the delivery of highly viscous liquids.
Control the flow output with variable frequency regulation or proportional control valve to achieve high precision control total range 5%~100% adjustment. - The new energy vehicle component test unit is mainly used for the offline detection of the drive motor of the new energy vehicle according to relevant test stanards and requuirements, it can test and simulate the performance requirements of motor in actual vehicle operation.
KRY series automotive test chillers support multiple channel temperature control
- Independent flow and pressure control
- temperature, flow and pressure are controlled independently.
Applications
- Battery Life Test
- Fuel Oil Test
- Motor Test Benches
- Converter and Inverter Test
- Test Bench for Electronics Components
- Component Tests for Power Modules
- Temperature Control of Air
- Other Applications
- Custom Design

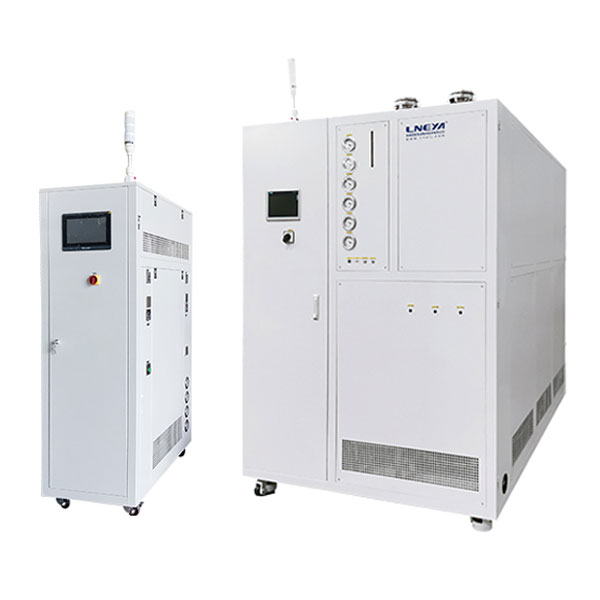

Automotive Chillers (one machine for multi groups)
Temperature remains constant, pressure / flow can be independently controlled
ALL MODELS
| Model | Cooling Capacity | Heating Capacity | Flow Rate Output | Power |
| kW | kW | L/min | kW | |
| KRY -40 ~ +100℃ 1&2 series | 2.5 ~ 60 | 7.5 ~ 38 | 1 ~ 40 | 16.5 ~ 81 |
| KRY -40 ~ +100℃ 1&3 series | 4 ~ 60 | 10 ~ 38 | 1 ~ 40 | 23.5 ~ 82 |
| KRY -40 ~ +100℃ 1&6 series | 5 ~ 60 | 15 ~ 38 | 1 ~ 40 | 38 ~ 82 |
| KRY -20 ~ +100℃ 1&6 series | 10 ~ 60 | 15 ~ 38 | 1 ~ 40 | 36 ~ 75 |
| KRY 0 ~ +100℃ 1&2 series | 7 ~ 60 | 7.5 ~ 38 | 2 ~ 50 | 17 ~ 65 |
| KRY 0 ~ +100℃ 1&3 series | 11 ~ 60 | 10 ~ 38 | 2 ~ 25 | 22 ~ 68 |
| KRY 0 ~ +100℃ 1&6 series | 18 ~ 60 | 15 ~ 38 | 2 ~ 20 | 38 ~ 82 |
Features of Vehicle Test Chillers
- Multi channel output, independent control of flow, no interference with each other.
- Temperature, flow and pressure can be controlled separately.
- Multi channel temperature control, and one device can achieve multi channel output, and control the flow separately.
- Strong circulation pump ensures the delivery of high viscosity liquid, it can provide high flow under stable pressure.
- Clear circuit, compact structure, multiple fault alarm functions to ensure safe operation of the equipment.
- Temperature variation range is usually from -40 to 100 degrees (which can be extended to 150 degrees). While controlling the temperature, you can also choose to control the flow or pressure.
- Equipped with powerful circulating pump to ensure the delivery of high viscosity liquid; Variable frequency regulation or proportional regulation valve is used to control the flow output to achieve high-precision control of 5% ~ 100% of the total range.
- The temperature control equipment can be flexibly connected with other test platforms.
Advantages of Vehicle Test Chillers
- Equipped with a powerful circulation pump while ensuring the delivery of highly viscous liquids.
Control the flow output with variable frequency regulation or proportional control valve to achieve high precision control total range 5%~100% adjustment. - The new energy vehicle component test unit is mainly used for the offline detection of the drive motor of the new energy vehicle according to relevant test stanards and requuirements, it can test and simulate the performance requirements of motor in actual vehicle operation.
KRY series automotive test chillers support multiple channel temperature control
- Independent flow and pressure control
- temperature, flow and pressure are controlled independently.
Applications
- Battery Life Test
- Fuel Oil Test
- Motor Test Benches
- Converter and Inverter Test
- Test Bench for Electronics Components
- Component Tests for Power Modules
- Temperature Control of Air
- Other Applications
- Custom Design
