LNEYA Chiller
Heating Systems
LNEYA specializes in the production of R&D heating systems with a temperature control range of 50 ℃ to 300 ℃. Equipped with a heating and cooling integrated container, the heat exchange area is large, the temperature rise and fall is fast, and the heat transfer oil demand is small.
ALL MODELS
| Model | Heating Capacity | Circulation Pump | Circulation Pump | Power |
| kW | L/min | bar | kW | |
| UC +50 ~ +200℃ series | 3 ~ 38 | 10 ~ 110 | 0.7 ~ 2.5 | 2.2 ~ 39.5 |
| UC +50 ~ +300℃ series | 3.5 ~ 200 | 35 ~ 600 | 2 ~ 3 | 5 ~ 212 |
Features of Heating Systems
- Equipped with heating cooling container, with large heat transfer area, fast heat-up and cool-down, small heat transfer oil demand.
- Can heat-up and cool-down continuously.
- The whole cycle is full closed,there is no oil mist at high temperature, heat transfer oil can not be oxidized and browning.
- With function of internal PT100 for correcting internal circulation.
- The whole system is closed with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃.
Advantages of Heating Systems
- The maximum temperature of LNEYA heating system can reach 300℃, and the ultra-high temperature control range can meet the needs of most industries. The fully closed cycle temperature control system ensures the stability of the cycle temperature and improves the temperature control accuracy of the product.
- This product supports customized explosion-proof series, which can be used in various hazardous places, and the explosion-proof level conforms to national safety standards. Equipment accessories can also be customized according to the actual needs of users of various international famous brands.
Applications
- Various Reactors (Micro-channels, Glass, Jacketed Reactors, etc.)
- Laboratories / Research Institutes
- Universities / Colleges
- Aerospace industry
- Automotive Industry
- Semiconductor and Electrical Industry
- Chemical / Pharmaceutical Industry
- Petrochemical Industry
- Biochemical Industry
- Medical Industry
- Plastics Industry
- Hospitals
- Cannabis
- R&D Workshop
- Biotechnology Industry
- Other Industries

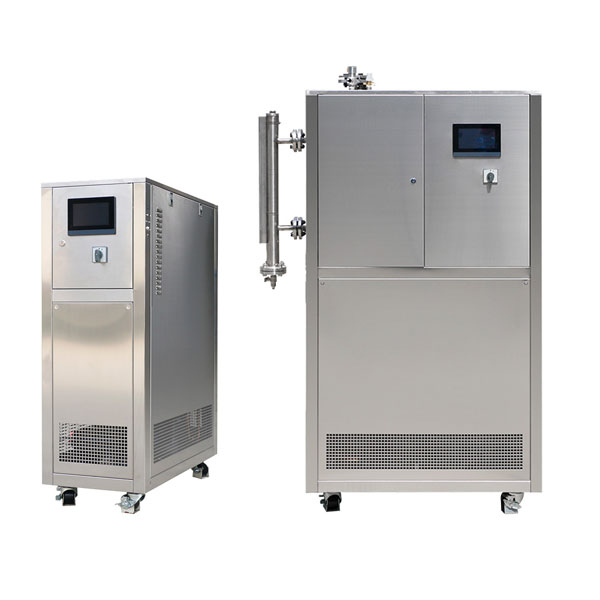

Heating Circulators
UST series heating circulator (With Water Cooling) is a device that cools down from a high temperature of 300°C. It is equipped with a refrigeration and heating system to achieve rapid temperature rise and fall. Fully closed circulation system, no oil mist is generated.
ALL MODELS
| Model | Heating Capacity | Circulation Pump | Circulation Pump | Power |
| kW | L/min | bar | kW | |
| UST +50 ~ +300℃ series | 3.5 ~ 95 | 35 ~ 400 | 2 ~ 2.5 | 5 ~ 101 |
Features of Heating Circulators
- UST series with the function of cooling down from high temperature and the temperature range from 50℃ to 300℃.
- Equipped with heating and cooling system, large heat exchange area, rapid speed of heating-cooling, the small demand for heat conducting medium.
- Can offer heating and cooling continuously.
- The whole system is closed,there is no oil mist at high temperature, novolatilization of heat conducting medium at high temperature.
- With inter temperature sensor PT100 to adjust internal circulation temperature.
- The whole system is a closed liquid circulation system with expansion tank, the expansion tank, and liquid circulation are thermal insulation, do not participate in liquid circulation,regardless of high or low temperature, the medium in the expansion tank is limited to 60℃.
- Allow fill in 15℃ cooling water, to enlarge temperature range of 25℃ to 300℃.
Advantages of Heating Circulators
- The temperature control range of the UST heating circulator is as high as 300°C, and the ultra-wide heating power range from 3.5kW to 200kW fully meets the heating and temperature control needs of various industries.
- There are more than a dozen equipment models for you to choose from. At the same time, we also support non-standard customized services and customized services for explosion-proof series. Please contact us for details.
Applications
- Various Reactors (Micro-channels, Glass, Jacketed Reactors, etc.)
- Laboratories / Research Institutes
- Universities / Colleges
- Aerospace industry
- Automotive Industry
- Semiconductor and Electrical Industry
- Chemical / Pharmaceutical Industry
- Petrochemical Industry
- Biochemical Industry
- Medical Industry
- Plastics Industry
- Hospitals
- Cannabis
- R&D Workshop
- Biotechnology Industry
- Other Industries

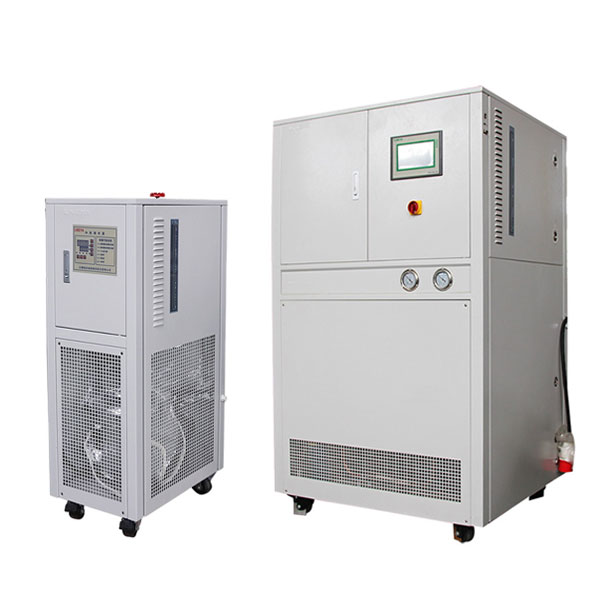

Hot Water Heating Machine
In the production process of the pharmaceutical and chemical industry, it is necessary to use steam heating to achieve process insulation or to heat the process with hot water. In order to meet the needs of our customers, according to our many years of production experience, it is specially designed to use steam as a heat source. A hot water temperature control device with normal temperature water as the water source.
ALL MODELS
| Model | Heat Transfer Capacity | Circulation Pump | Circulation Pump | Power |
| kW | L/min | bar | kW | |
| ST RT+10 ~ +135℃ series | 25 ~ 300 | 110 ~ 600 | 2.5 | 1.8 ~ 7.5 |
Features of Heating Systems
- Heat medium: saturated steam pressure: 0.5MPa and above, temperature: 158.8 ℃ and above.
- Hot water control temperature RT + 10 ℃ ~ 135 ℃.
- The process water is circularly heated by using the pipe type steam and water mixed heat exchanger.
- The steam shall have low noise, no vibration and high thermal efficiency in the use of heat exchange process.
- The service life of steam and water mixed heat exchanger is more than 15 years, so as to achieve once and for all.
- The temperature of process hot water is constant without manual duty and fully automatic control.
Advantages of Heating Systems
- In the production process of the pharmaceutical and chemical industry, it is necessary to use steam heating to achieve process insulation or to heat the process with hot water. In order to meet the needs of our customers, according to our many years of production experience, it is specially designed to use steam as a heat source. A hot water temperature control device with normal temperature water as the water source.
Applications
- Various Reactors (Micro-channels, Glass, Jacketed Reactors, etc.)
- Laboratories / Research Institutes
- Universities / Colleges
- Aerospace industry
- Automotive Industry
- Semiconductor and Electrical Industry
- Chemical / Pharmaceutical Industry
- Petrochemical Industry
- Biochemical Industry
- Medical Industry
- Plastics Industry
- Hospitals
- Cannabis
- R&D Workshop
- Biotechnology Industry
- Other Industries
