WATER COOLED CHILLERS

Water cooled chiller is a cooling method of chiller, which can emit heat to cool the water used in projects and industrial structures, and re-enter the operation cycle. In fact, the chiller transfers heat from the space requiring temperature control to another space. Therefore, the chiller is not a means of generating cold, but a means of heat dissipation. Its task is to transfer heat to places outside the system.

The cooling tower is specially designed for the water-cooled chiller, because the condenser of the water-cooled chiller uses water as the stimulation and cooling material. Because the wet surface is more successful in heat transfer and can also perform compression function at wetter temperatures, the efficiency of water-cooled chillers will be higher.

Air Cooled Chillers VS. Water Cooled Chillers

In terms of equipment size, due to the different working principles, the size of the air-cooled chiller is smaller than that of the water-cooled chiller, and the use and later maintenance are relatively simple.

From the perspective of equipment efficiency, the cooling effect of the water-cooled chiller is stronger than that of the air-cooled chiller, and the power consumption is less.

The water-cooled chiller needs to be placed in a special machine room when it is used, but the air-cooled chiller does not. Therefore, if there is no suitable site, it is more appropriate to choose an air-cooled chiller.

Water Cooled – Low Temperature Chillers (custom designs)

ALL MODELS

Model	Cooling Capacity	Expansion Tank	Circulation Pump	Power
	kW	L	m³/h	kW
LC -25 ~ -5℃ series	12 ~ 360	100 ~ 1800	6.6 ~ 50	12 ~ 247
LJ -45 ~ -10℃ series	6 ~ 360	50 ~ 1800	6.6 ~ 50	12 ~ 247
LN -60 ~ -10℃ series	6 ~ 360	100 ~ 1800	6.6 ~ 50	14 ~ 300
LD -80 ~ -30℃ series	4 ~ 270	100 ~ 2200	6.6 ~ 65	14 ~ 588
CDLJ -110 ~ -50℃ series	2 ~ 180	50 ~ 1000	6.6 ~ 50	14 ~ 768
SLJ -150 ~ -110℃ series	1.4 ~ 11	/	/	8.6 ~ 36

Water Cooled – Room Temperature Chillers (custom designs)

ALL MODELS

Model	Cooling Capacity	Capacity of Liquid Storage	Circulation Pump	Power
	kW	L	L/min	kW
FL +5 ~ +50℃ series	1.8 ~ 50	15 ~ 300	25 ~ 250	1.5 ~ 17
FL-800N -18 ~ +30℃ series	0.35 ~ 0.9	3.5	10	0.6

Water Cooled – Test Chillers (custom designs)

ALL MODELS

Model	Cooling Capacity	Heating Capacity	Flow Rate Output	Power
	kW	kW	L/min	kW
KRY -25 ~ +100℃ series	2.8 ~ 38	5.5 ~ 38	1 ~ 50	11 ~ 45
KRY -40 ~ +100℃ series	1.2 ~ 60	5.5 ~ 60	1 ~ 50	12 ~ 84
KRY 0 ~ +100℃ series	1.8 ~ 60	2.5 ~ 60	2 ~ 50	4.5 ~ 61
KRYP -40 ~ +135℃ series	4 ~ 60	15 ~ 60	110 ~ 300	24 ~ 95

Water Cooled – Test Chillers (custom designs)

(one machine for multi groups)

Temperature / Pressure / Flow can be independently controlled

ALL MODELS

Model	Cooling Capacity	Heating Capacity	Flow Rate Output	Power
	kW	kW	L/min	kW
KRY -40 ~ +100℃ 1&2 series	1.8*2 ~ 60*2	7.5*2 ~ 38*2	1 ~ 40	30 ~ 158
KRY 0 ~ +100℃ 1&2 series	1.8*2 ~ 60*2	2.5*2 ~ 38*2	2 ~ 50	9 ~ 120

Water Cooled – Test Chillers (custom designs)

(one machine for multi groups)

Temperature remains constant, pressure / flow can be independently controlled

ALL MODELS

Model	Cooling Capacity	Heating Capacity	Flow Rate Output	Power
	kW	kW	L/min	kW
KRY -40 ~ +100℃ 1&2 series	2.5 ~ 60	7.5 ~ 38	1 ~ 40	16.5 ~ 81
KRY -40 ~ +100℃ 1&3 series	4 ~ 60	10 ~ 38	1 ~ 40	23.5 ~ 82
KRY -40 ~ +100℃ 1&6 series	5 ~ 60	15 ~ 38	1 ~ 40	38 ~ 82
KRY -20 ~ +100℃ 1&6 series	10 ~ 60	15 ~ 38	1 ~ 40	36 ~ 75
KRY 0 ~ +100℃ 1&2 series	7 ~ 60	7.5 ~ 38	2 ~ 50	17 ~ 65
KRY 0 ~ +100℃ 1&3 series	11 ~ 60	10 ~ 38	2 ~ 25	22 ~ 68
KRY 0 ~ +100℃ 1&6 series	18 ~ 60	15 ~ 38	2 ~ 20	38 ~ 82

Water Cooled – Semiconductor Chillers (custom designs)

(TES series)

ALL MODELS

Model	Cooling Capacity	Heating Capacity	Circulating Pump	Power
	kW	kW	L/min	kW
TES -45 ~ +250℃ series	0.3 ~ 25	3 ~ 25	25 ~ 150	6 ~ 36
TES -85 ~ +200℃ series	0.25 ~ 25	2.5 ~ 25	20 ~ 150	6.5 ~ 50
TES -60 ~ +200℃ series	3 ~ 60	15 ~ 60	110 ~ 500	28 ~ 102

Water Cooled – Semiconductor Chillers (Fluorinated Liquid) (custom designs)

(LTS series)

ALL MODELS

Model	Accuracy	Flow Control	Expansion Valve Volume
	℃	L/min	L
LTS -20 ~ +80℃ series	±0.1	7 ~ 45	10 ~ 20
LTS -40 ~ +80℃ series	±0.1	7 ~ 45	10 ~ 20
LTS -60 ~ +80℃ series	±0.1	7 ~ 45	10 ~ 20
LTS -80 ~ +80℃ series	±0.1	7 ~ 45	10 ~ 20

Water Cooled – Cooling & Heating Systems (custom designs)

ALL MODELS

Model	Cooling Capacity	Heating Capacity	Circulating Pump	Power
	kW	kW	L/min	kW
SUNDI -10 ~ +200℃ series	1.5 ~ 15	2.5 ~ 15	20 ~ 75	3.6 ~ 20
SUNDI -25 ~ +200℃ series	1 ~ 200	2.5 ~ 200	20 ~ 600	4 ~ 260
SUNDI -25 ~ +300℃ series	1 ~ 200	2.5 ~ 200	20 ~ 600	4 ~ 260
SUNDI -45 ~ +250℃ series	0.45 ~ 200	3.5 ~ 200	35 ~ 600	6.5 ~ 280
SUNDI -45 ~ +300℃ series	0.9 ~ 25	5.5 ~ 25	35 ~ 150	9.5 ~ 38
SUNDI -60 ~ +250℃ series	0.25 ~ 60	2.5 ~ 60	20 ~ 250	5 ~ 95
SUNDI -60 ~ +300℃ series	0.75 ~ 25	5.5 ~ 25	35 ~ 150	10 ~ 40
SUNDI -70 ~ +250℃ series	0.4 ~ 15	2.5 ~ 15	20 ~ 110	5.2 ~ 28
SUNDI -80 ~ +250℃ series	0.3 ~ 80	3 ~ 80	20 ~ 400	7.5 ~ 150
SUNDI -90 ~ +250℃ series	0.2 ~ 80	3 ~ 80	20 ~ 400	8 ~ 170
SUNDI -100 ~ +100℃ series	0.45 ~ 80	3.5 ~ 80	35 ~ 400	12 ~ 200
SUNDI -25 ~ +200℃ One machine for two reactors	1*2 ~ 10*2	2.5*2 ~ 10*2	20*2 ~ 50*2	7.5 ~ 31
SUNDI -40 ~ +200℃ One machine for two reactors	0.45*2 ~ 10*2	2.5*2 ~ 10*2	20*2 ~ 60*2	8 ~ 33

Water Cooled – Refrigerated & Heating Circulators (custom designs)

ALL MODELS

Model	Cooling Capacity	Heating Capacity	Circulating Pump	Power
	kW	kW	L/min	kW
HR -25 ~ +200℃ series	1 ~ 15	2.5 ~ 15	20 ~ 110	4 ~ 21
HRT -45 ~ +250℃ series	0.25 ~ 15	2.5 ~ 15	20 ~ 110	4.5 ~ 25

Related Products

Low Temperature Chillers

Show Models

Room Temperature Chillers

Show Models

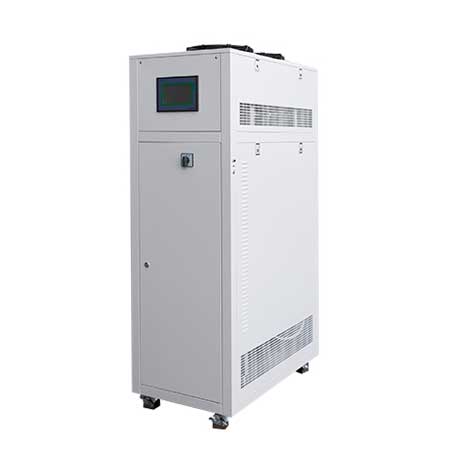

Air Cooled Chillers
