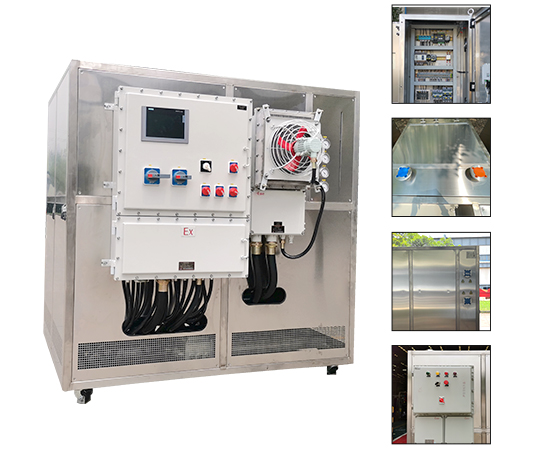

SUNDI -90 ~ +250°C Heater and Cooler in One

-90 ~ +250°C (optional: -150 ~ +350°C)Temperature Range

0.2 ~ 80kWCooling Capacity

8 ~ 170kWPower

±0.5°CAccuracy

7 / 10 inchColor Touch Screen

20 ~ 400L/minCirculation Pump

CUSTOM DESIGN

Leave a Message

Email Us

Features of Cooling and Heating Systems

Previously unachievable performance.
Intelligent temperature control system.
Maximum process stability and reproducibility.
Adop plate heat exchager, Pipeline heating, the fastest heating and cooling rates.
High cooling power from 0.5 to 1200kW.
Large temperature range without fluid change.
Closed system, extend thermal fluid lifetime.
Incredibly compact.
7-inch, 10-inch color TFT touch screen display.
Comprehensive warning and safety functions.
Rapid cooling down from high temperature.
Use magnetic drive pump, solve the circulation pump leakage.

Advantages of Cooling and Heating Systems

Structure Design

A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature.

The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃.

Display Function

Display all the kind of process control temperatures.
Shows the liquid level of the heat conducting medium in the expansion vessel.
Shows indication for refrigeration system working.
Shows indication for heater working.
Shows indication for circulation pump working.
Display the temperature control.
The temperature upper limit, lower limit control can be set.
The temperature difference between jacket & reactor material can be set.
Shows the alarm to add the liquid when it is empty.
The refrigeration compressor can be set to operate manually or automatically.

Data Interface and Software

Standard configuration:

PT100 temperature sensor input interface.
USB export data interface.
RS485 communication interface (MODBUS protocol).
Alarm output

Optional:

4 ~ 20mA Input interface for temperature measurement.
4 ~ 20mA Input interface for setting temperature.
Ethernet interface.
RS232 communication interface (MODBUS protocol).
Profibus-DP interface.
Computer operation software (optional Ethernet interface).

Configuration Software (Optional)

All dynamic temperature control system can be connected with the computer.
You can install and record the picture of display on the computer via the configuration software.

Communication distance less than 200m.
Easily temperature setting.
Real time control screen.
Curve records.
Program selection.
Alarm screen recording.

Products Parameters

Noted: Can provide customized services all types of equipment. Please consult us for details.

Model		SUNDI-925W	SUNDI-935W	SUNDI-955W	SUNDI-975W	SUNDI-9A10W	SUNDI-9A15W	SUNDI-9A25W	SUNDI-9A38W	SUNDI-9A60W	SUNDI-9A80W
Temp. range		-90℃～+250℃（the system add pressure 3bar)
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment, reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃								±0.5℃
Material temp. accuracy		±1℃
Heating power kW		3	3.5	5.5	7.5	10	15	25	38	60	80
Cooling capacity kW at	250℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	0℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	-60℃	1.1	1.9	2.8	3.2	4.2	6	10	16	24	32
	-80℃	0.35	0.5	0.8	1.2	1.6	2.1	3.5	6	11	15
	-85℃	0.2	0.3	0.5	0.7	0.85	1.3	1.9	3.5	6	8
Circulation pump max L/min bar		20	35	35	50	60	110	150	200	400	400
Circulation pump max L/min bar		1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5	2.5	2.5
Pump		Magnetic drive pump							Magnetic drive pump
Compressor		Emerson copeland/Carlyle		Emerson copeland/Carlyle
Expansion valve		Electronic expansion valve
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R508B
Connection size		ZG3/4	ZG3/4	ZG3/4	ZG1	ZG1	ZG1	DN32 PN10	DN40 PN10	DN65 PN10	DN65 PN10
Water-cooled type W(cooling water@20℃)		1600L/H 1.5bar~4bar	2500L/H 1.5bar~4bar	3400L/H 1.5bar~4bar	4000L/H 1.5bar~4bar	5200L/H 1.5bar~4bar	8m³/H 1.5bar~4bar	12m³/H 1.5bar~4bar	20m³/H 1.5bar~4bar	30m³/H 1.5bar~4bar	40m³/H 1.5bar~4bar
Dimension cm		70100185	70100185	80120185	80120185	80120185	150100185	200145205	200145205	250160225	300160225
Weight kg		260	295	365	570	680	950	1400	1750	2400	3150
Power 380V 50HZ		7.5kW	11kW	13kW	16kW	21kW	32kW	53kW	76kW	130kW	170kW
Case material		Cold-rolled sheet spraying (standard color 7035)
Optional		Optional Ethernet interface, configure the computer operating software. Optional outside touch screen display controller(separated),the communication line distance is 10 meter.
Optional		The heating power is within 25KW, and the SUNDI series can be equipped with an optional temperature control accuracy of ±0.1°C.
