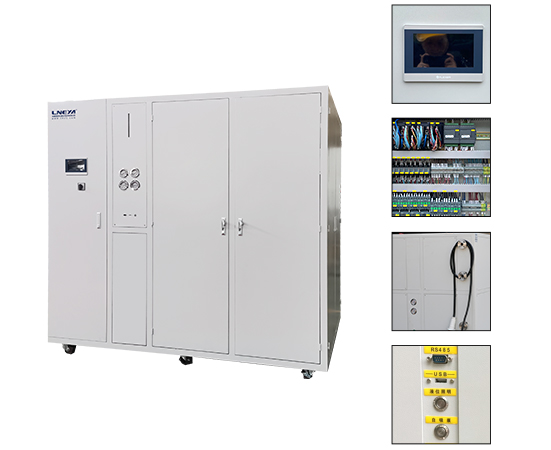

WTD -70 ~ +200°C Cooling Heating System

Cooling Heating System
-70 ~ +200°C (optional: -150 ~ +350°C)Temperature Range
11 ~ 50kWCooling Capacity
38 ~ 50kWHeating Power
±0.5°CAccuracy
7 / 10 inchColor Touch Screen
250L/minCirculation Pump

Features of Cooling and Heating Systems

  • It is specially designed and developed for the characteristics of small liquid holding capacity, strong heat exchange capacity, and large pressure drop in the circulation system of the microchannel reactor.
  • Optimize temperature sampling and response speed, specially design control algorithm, can respond quickly to stable temperature control.
  • Enhance the design of the circulating pump capacity to meet the high pressure drop requirements of the reactor.
  • Continuous high temperature cooling technology to meet the requirement of stable operation when the temperature control is required for high temperature exothermic reaction.

Advantages of Cooling and Heating Systems

chiller heater

Structure Design

A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature.

The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃.

Display Function

  1. Display all the kind of process control temperatures.
  2. Shows the liquid level of the heat conducting medium in the expansion vessel.
  3. Shows indication for refrigeration system working.
  4. Shows indication for heater working.
  5. Shows indication for circulation pump working.
  6. Display the temperature control.
  7. The temperature upper limit, lower limit control can be set.
  8. The temperature difference between jacket & reactor material can be set.
  9. Shows the alarm to add the liquid when it is empty.
  10. The refrigeration compressor can be set to operate manually or automatically.
cool-heat-system

Data Interface and Software

Standard configuration:

  1. PT100 temperature sensor input interface.
  2. USB export data interface.
  3. RS485 communication interface (MODBUS protocol).

Optional:

  1. 4 ~ 20mA Input interface for temperature measurement.
  2. 4 ~ 20mA Input interface for setting temperature.
  3. Ethernet interface.
  4. RS232 communication interface (MODBUS protocol).
  5. Profibus-DP interface.
  6. Computer operation software (optional Ethernet interface).
heat-cool-unit-1

Configuration Software (Optional)

All dynamic temperature control system can be connected with the computer.
You can install and record the picture of display on the computer via the configuration software.

  • Communication distance less than 200m.
  • Easily temperature setting.
  • Real time control screen.
  • Curve records.
  • Program selection.
  • Alarm screen recording.

Products Parameters



Noted: Can provide customized services all types of equipment. Please consult us for details.



ModelWTD-2A38W-2TPEXWTD-4A38W-2TPEXWTD-7A50WPEX
Temperature range-25~200°C-25~200°C-45~200°C-45~200°C-70~200°C
Temperature control accuracy±0.5℃
Temperature resolution0.1K
Operation panelSiemens 7-inch color explosion-proof touch screen
Data curveData curve record
Data outputU disk excel format
Temperature control accuracyGuanya Control System
System circulating fluid30L+30L30L+30L50L
Expansion tank volume120L120L100L
Heating power38KW38KW38kw38kw50kw
HeaterElectric heaters   heating power 3W/cm2
Heating actuatorVoltage regulating actuator 4~20mA control
Refrigeration
ability
200°C38kw38kw38kw38kw50KW
 100°C38kw38kw38kw38kw50KW
 20°C38kw38kw38kw38kw50KW
 -20°C15kw15kw20KW20KW40KW
 -35°C  11KW11KW25KW
 -60°C    12KW
Circulating pump max250L/min 3bar250L/min 3bar250L/min 3bar250L/min 3bar250L/min 3bar
Oil interface sizeDN50 PN16
Cooling water heat exchangerDouble tube heat exchanger
Cooling water volume25m³/h  1BAR~4bar  Connection size: DN65 PN1028m³/h 1BAR~4bar     Connection size: DN65 PN1028m³/h 1BAR~4bar  Connection size: DN65 PN10
CompressorEmerson Copeland Scroll Flexible Compressor
Temperature SensorPT100 Liquid temperature at inlet and outlet of each group
RefrigerantSynthetic heat transfer oil
Refrigerant200L200L150L
Pipe materialSUS304
Low voltage electricalSchneider/Siemens
Explosion-proof formPositive pressure explosion-proof explosion-proof product installation license number: PCEC-2017-B025
Size cm250*200*220250*200*220250*200*220
Weight2500KG2600KG2600KG
Power supply380V 50HZ  110KW  MAX380V 50HZ 125KW MAX380V 50HZ 120KW MAX
