-60 ~ +80°C (optional: -80 ~ +80°C)Temperature Range

10 ~ 20LExpansion Valve

7 ~ 45L/minFlow Control

±0.1°CAccuracy

7 / 10 inchColor Touch Screen

CUSTOM DESIGN

Leave a Message

Email Us

WhatsApp

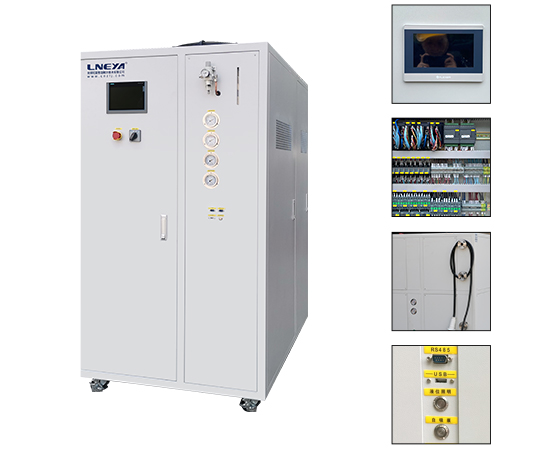

Features of Semiconductor Chillers

• The pressure holding test of the medium circulation system is 7 bar.
• Use high-quality magnetic pump without mechanical shaft seal.
• Optimize temperature sampling and response speed, specially designed control algorithm, can respond quickly to stable temperature control.
• Enhance the design of circulating pump capacity to meet the high-lift requirements of the system.
• Continuous high temperature cooling technology meets the requirements of stable operation when heat is loaded on the heat sink plate and requires constant temperature control of cooling and heating.
• In view of the volatile characteristics of fluorinated liquid, the joint design and system sealing design are strengthened to ensure the service life of the medium.

Advantages of Semiconductor Chillers

Display Function

1. Display all the kind of process control temperatures.
2. Shows the liquid level of the heat conducting medium in the expansion vessel.
3. Shows indication for refrigeration system working.
4. Shows indication for heater working.
5. Shows indication for circulation pump working.
6. Display the temperature control.
7. The temperature upper limit, lower limit control can be set.
8. The temperature difference between jacket & reactor material can be set.
9. Shows the alarm to add the liquid when it is empty.
10. The refrigeration compressor can be set to operate manually or automatically.

Data Interface and Software

Standard configuration:

1. PT100 temperature sensor input interface.
2. USB export data interface.
3. RS485 communication interface (MODBUS protocol).

Optional:

1. 4 ~ 20mA Input interface for temperature measurement.
2. 4 ~ 20mA Input interface for setting temperature.
3. Ethernet interface.
4. RS232 communication interface (MODBUS protocol).
5. Profibus-DP interface.
6. Computer operation software (optional Ethernet interface).

Configuration Software (Optional)

All dynamic temperature control system can be connected with the computer.
You can install and record the picture of display on the computer via the configuration software.

• Communication distance less than 200m.
• Easily temperature setting.
• Real time control screen.
• Curve records.
• Program selection.
• Alarm screen recording.

Products Parameters

Noted: Can provide customized services all types of equipment. Please consult us for details.
