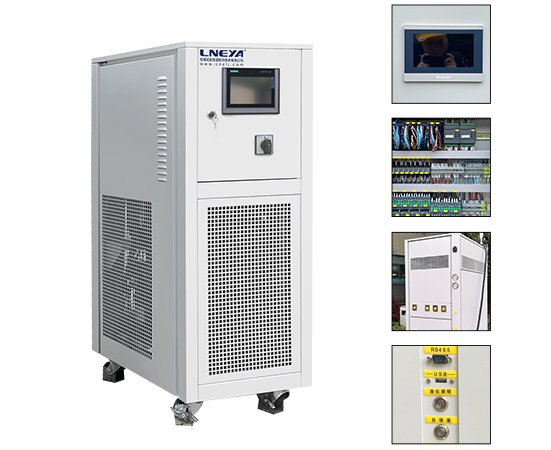

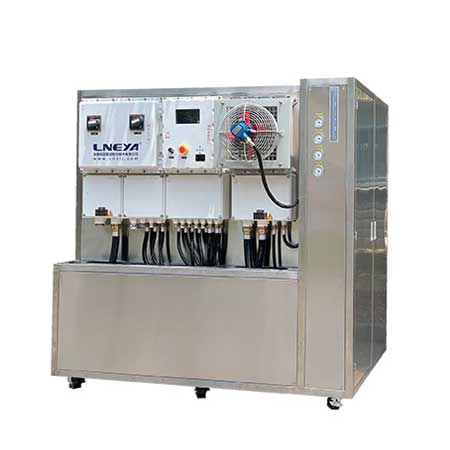

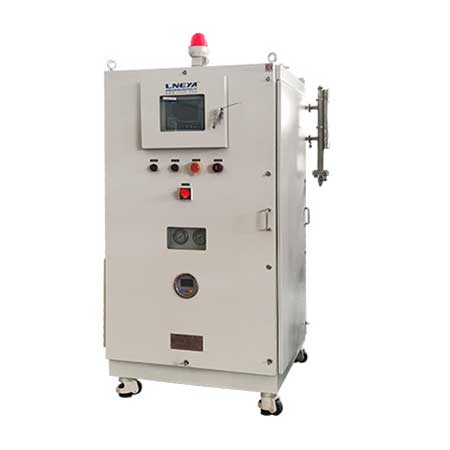

SUNDI -25 ~ +200°C Cooling Heating Systems

-25 ~ +200°C (optional: -150 ~ +350°C)Temperature Range

1 ~ 200kWCooling Capacity

4 ~ 260kWPower

±0.5°CAccuracy

7 / 10 inchColor Touch Screen

20 ~ 600L/minCirculation Pump

CUSTOM DESIGN

Leave a Message

Email Us

Features of Cooling and Heating Systems

Previously unachievable performance.
Intelligent temperature control system.
Maximum process stability and reproducibility.
Adop plate heat exchager, Pipeline heating, the fastest heating and cooling rates.
High cooling power from 0.5 to 1200kW.
Large temperature range without fluid change.
Closed system, extend thermal fluid lifetime.
Incredibly compact.
7-inch, 10-inch color TFT touch screen display.
Comprehensive warning and safety functions.
Rapid cooling down from high temperature.
Use magnetic drive pump, solve the circulation pump leakage.

Advantages of Cooling and Heating Systems

Structure Design

A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature.

The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃.

Display Function

Display all the kind of process control temperatures.
Shows the liquid level of the heat conducting medium in the expansion vessel.
Shows indication for refrigeration system working.
Shows indication for heater working.
Shows indication for circulation pump working.
Display the temperature control.
The temperature upper limit, lower limit control can be set.
The temperature difference between jacket & reactor material can be set.
Shows the alarm to add the liquid when it is empty.
The refrigeration compressor can be set to operate manually or automatically.

Data Interface and Software

Standard configuration:

PT100 temperature sensor input interface.
USB export data interface.
RS485 communication interface (MODBUS protocol).
Alarm output

Optional:

4 ~ 20mA Input interface for temperature measurement.
4 ~ 20mA Input interface for setting temperature.
Ethernet interface.
RS232 communication interface (MODBUS protocol).
Profibus-DP interface.
Computer operation software (optional Ethernet interface).

Configuration Software (Optional)

All dynamic temperature control system can be connected with the computer.
You can install and record the picture of display on the computer via the configuration software.

Communication distance less than 200m.
Easily temperature setting.
Real time control screen.
Curve records.
Program selection.
Alarm screen recording.

Products Parameters

Noted: Can provide customized services all types of equipment. Please consult us for details.

Model		SUNDI-225 SUNDI-225W	SUNDI-235 SUNDI-235W	SUNDI-255 SUNDI-255W	SUNDI-275 SUNDI-275W	SUNDI-2A10 SUNDI-2A10W	SUNDI-2A15 SUNDI-2A15W	SUNDI-2A25 SUNDI-2A25W	SUNDI-2A38W	SUNDI-2A60W	SUNDI-2A95W
Temp. range		-25℃～+200℃
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol, RS 485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment,reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃
Material temp. accuracy		±1℃
Heating power kW		2.5	3.5	5.5	7.5	10	15	25	38	60	95
Cooling capacity kW at	200℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95
	100℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95
	50℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95
	20℃	2.5	3.5	5.5	7.5	10	15	25	38	60	95
	-5℃	2	3	4.5	6.6	8	12	19	30	46	70
	-20℃	1	1.8	2.8	3.8	4.6	7	12	16	22	32
Circulation pump max L/min bar		20	35	35	50	60	110	150	200	250	400
Circulation pump max L/min bar		1	1.2	1.2	1.2	1.2	1.5	1.5	1.5	2.5	2.5
Compressor		Tecumseh	Emerson copeland/scroll compressor								Emerson copeland/Carlyle
Expansion valve		Electronic expansion valve
Evaporator		Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R507C
Connection size		ZG1/2	ZG3/4	ZG3/4	ZG1	ZG1	ZG1	DN32	DN40	DN50	DN65
Water-cooled type W(cooling water@20℃)		600L/H 1.5bar~4bar	800L/H 1.5bar~4bar	1200L/H 1.5bar~4bar	1600L/H 1.5bar~4bar	2400L/H 1.5bar~4bar	3000L/H 1.5bar~4bar	6m³/H 1.5bar~4bar	8m³/H 1.5bar~4bar	12m³/H 1.5bar~4bar	18m³/H 1.5bar~4bar
Dimension cm		4070130	4570160	4570160	5570175	6585185	7085185	80120185	150100185	200145205	200145205
Weight kg		115	165	185	230	280	300	550	750	1000	1250
Power 380V 50HZ		AC220V 4kW	5.6kW	8kW	11kW	14kW	21kW	35kW	54kW	81kW	126kW
Case material		Cold-rolled sheet spraying (standard color 7035)
Optional		Optional Ethernet interface, configure the computer operating software. Optional outside touch screen display controller(separated),the communication line distance is 10 meter.
Optional		The heating power is within 25KW, and the SUNDI series can be equipped with an optional temperature control accuracy of ±0.1°C.
