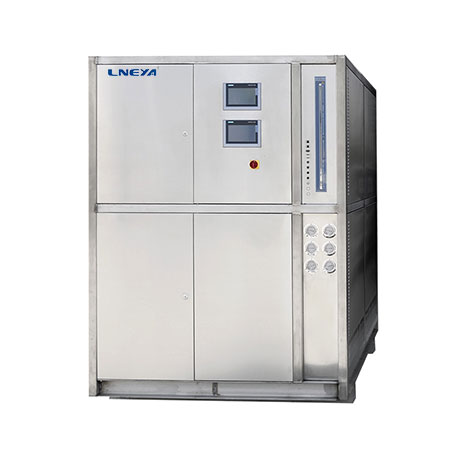

SUNDI -40 ~ +200°C Cooling Heating Systems for Two Reactors

-40 ~ +200°C (optional: -150 ~ +350°C)Temperature Range

0.45*2 ~ 10*2kWCooling Capacity

8 ~ 33kWPower

±0.5°CAccuracy

7 / 10 inchColor Touch Screen

20*2 ~ 60*2L/minCirculation Pump

CUSTOM DESIGN

Leave a Message

Email Us

Features of Cooling and Heating Systems

Previously unachievable performance.
Intelligent temperature control system.
Maximum process stability and reproducibility.
Adop plate heat exchager, Pipeline heating, the fastest heating and cooling rates.
High cooling power from 0.5 to 1200kW.
Large temperature range without fluid change.
Closed system, extend thermal fluid lifetime.
Incredibly compact.
7-inch, 10-inch color TFT touch screen display.
Comprehensive warning and safety functions.
Rapid cooling down from high temperature.
Use magnetic drive pump, solve the circulation pump leakage.

Advantages of Cooling and Heating Systems

Structure Design

A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature.

The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60℃.

Display Function

Display all the kind of process control temperatures.
Shows the liquid level of the heat conducting medium in the expansion vessel.
Shows indication for refrigeration system working.
Shows indication for heater working.
Shows indication for circulation pump working.
Display the temperature control.
The temperature upper limit, lower limit control can be set.
The temperature difference between jacket & reactor material can be set.
Shows the alarm to add the liquid when it is empty.
The refrigeration compressor can be set to operate manually or automatically.

Data Interface and Software

Standard configuration:

PT100 temperature sensor input interface.
USB export data interface.
RS485 communication interface (MODBUS protocol).
Alarm output

Optional:

4 ~ 20mA Input interface for temperature measurement.
4 ~ 20mA Input interface for setting temperature.
Ethernet interface.
RS232 communication interface (MODBUS protocol).
Profibus-DP interface.
Computer operation software (optional Ethernet interface).

Configuration Software (Optional)

All dynamic temperature control system can be connected with the computer.
You can install and record the picture of display on the computer via the configuration software.

Communication distance less than 200m.
Easily temperature setting.
Real time control screen.
Curve records.
Program selection.
Alarm screen recording.

Products Parameters

Noted: Can provide customized services all types of equipment. Please consult us for details.

Model		SUNDI-425W-2T N SUNDI-425-2T N	SUNDI-435W-2T N SUNDI-435-2T N	SUNDI-455W-2T N SUNDI-455-2T N	SUNDI-475W-2T N SUNDI-475-2T N	SUNDI-4A10W-2T N SUNDI-4A10-2T N
Temp. range		-40℃～+200℃
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model TWO GROUPS
Temp. difference		Set or control the temperature difference between jacket oil and raw material process TWO GROUPS
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		the temp. of three points: the inlet and outlet of equipment, reactor material temp.(external temp. sensor)*2
Medium temp. acccuracy		±0.5℃
Material temp. accuracy		±1℃
Heating power kW		2.5*2	3.5*2	5.5*2	7.5*2	10*2
Cooling capacity kW at ℃	200℃	2.5*2	3.5*2	5.5*2	7*2	10*2
	100℃	2.5*2	3.5*2	5.5*2	7*2	10*2
	20℃	2.5*2	3.5*2	5.5*2	7*2	10*2
	0℃	1.5*2	2.5*2	3.5*2	5*2	7.5*2
	-20℃	1*2	1.6*2	2.1*2	3*2	4*2
	-35℃	0.45*2	0.75*2	1*2	1.4*2	1.8*2
Circulation pump max L/min bar		20*2	35*2	35*2	50*2	50*2
		1.5	2	2	2	2
Compressor		Tecumseh/Highly	Emerson copeland vortex flexible
Expansion valve		Emerson thermal expansion valve/danfoss thermal expansion valve.
Evaporator		DANFOSS/KAORI Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R507C, optional: R448A
Connection size		G3/4	G3/4	G3/4	G3/4	G1
Water-cooled type W(cooling water@20℃)		1200L/H 1.5bar~4bar	1400L/H 1.5bar~4bar	1700L/H 1.5bar~4bar	2100L/H 1.5bar~4bar	2500L/H 1.5bar~4bar
Dimension(water type）cm		55100175	70100175	70100175	80120185	100150185
Dimension(air type）cm		55100175	55100175	70100175	70100175	80120185
weight kg		240	285	345	385	480
power 380V 50HZ		220V 8kW	12kW	17.5kW	24kW	33kW
