+50 ~ +300°CTemperature Range

3.5 ~ 200kWHeating Power

5 ~ 212kWPower

±0.5°CAccuracy

7 / 10 inchColor Touch Screen

35 ~ 600L/minCirculation Pump

CUSTOM DESIGN

Leave a Message

Email Us

WhatsApp

Features of Heating Systems

• Equipped with heating cooling container, with large heat transfer area, fast heat-up and cool-down, small heat transfer oil demand.
• Can heat-up and cool-down continuously.
• The whole cycle is full closed,there is no oil mist at high temperature, heat transfer oil can not be oxidized and browning.
• With function of internal PT100 for correcting internal circulation.
• The whole system is closed with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃.

Advantages of Heating Systems

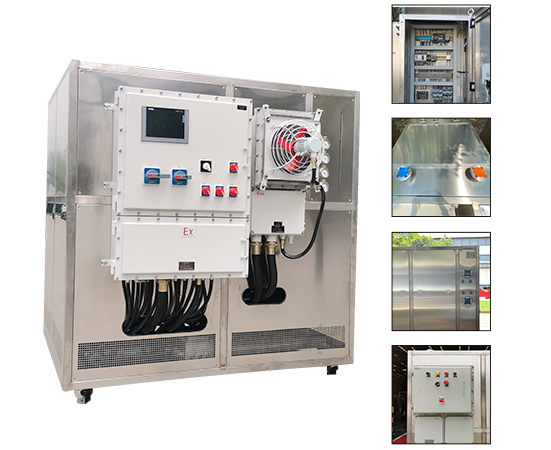

Custom Explosion Proof Cabinet

Positive pressure cabinet is composed of positive pressure cavity and control cavity.

Positive pressure cavity is used for installing various of instrument or electronics which with non-explosion-proof.

The control cavity has explosion-proof control box and pressure control system.

The case material of positive pressure cabinet with 2~3mm Cold rolled steel sheet welding and the Air-duct with galvanized steel pipe.

Adopt bulkhead connector and tightening device for in&out of the cable.

There is a glass display in the front of door and display the information of instrument and indicator light.

Display Function

1. Display all the kind of process control temperatures.
2. Shows the liquid level of the heat conducting medium in the expansion vessel.
3. Shows indication for refrigeration system working.
4. Shows indication for heater working.
5. Shows indication for circulation pump working.
6. Display the temperature control.
7. The temperature upper limit, lower limit control can be set.
8. The temperature difference between jacket & reactor material can be set.
9. Shows the alarm to add the liquid when it is empty.
10. The refrigeration compressor can be set to operate manually or automatically.

Data Interface and Software

Standard configuration:

1. PT100 temperature sensor input interface.
2. USB export data interface.
3. RS485 communication interface (MODBUS protocol).
4. Alarm output

Optional:

1. 4 ~ 20mA Input interface for temperature measurement.
2. 4 ~ 20mA Input interface for setting temperature.
3. Ethernet interface.
4. RS232 communication interface (MODBUS protocol).
5. Profibus-DP interface.
6. Computer operation software (optional Ethernet interface).

Configuration Software (Optional)

All dynamic temperature control system can be connected with the computer.
You can install and record the picture of display on the computer via the configuration software.

• Communication distance less than 200m.
• Easily temperature setting.
• Real time control screen.
• Curve records.
• Program selection.
• Alarm screen recording.

Products Parameters

Noted: Can provide customized services all types of equipment. Please consult us for details.
